FDM06-P 皮托管热质式流量计_风速风量传感器_自动化精密量测仪器仪表、信号讯号仪表

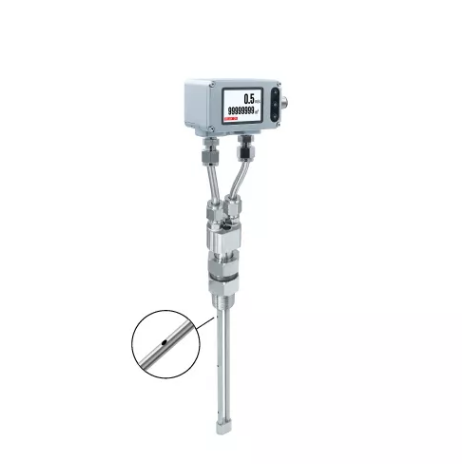

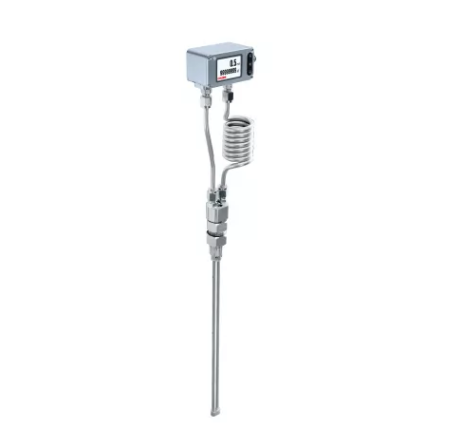

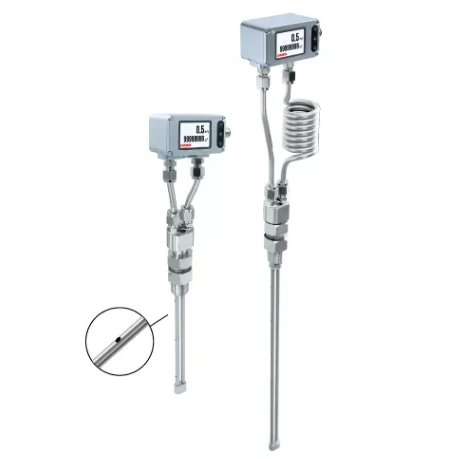

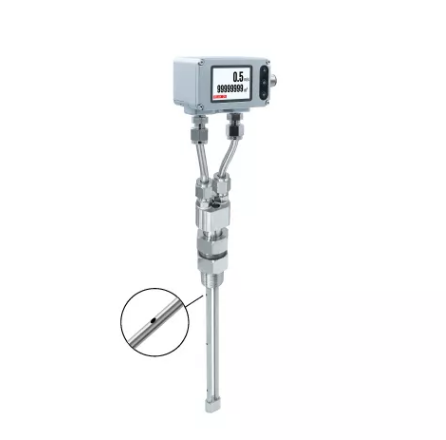

FDM06-P 皮托管热质式流量计

传感器种类：热质式传感器
量程比：100：1
输出：4 ... 20 mA / 0 ... 10 V / Relay / RS-485
精度：0.5 ... 60 m/s：±(1.5% of mv + 0.8 m/s)
护等级：IP65

型号 : FDM06-P

数量 :

高灵敏度、低压损，能够侦测微小气流变化

不需温压补偿，可直接输出流速/流量/累积量

提供2″~12″多尺寸选择，安装便捷

高精度±1.5% F.S.，管路耐压16 bar

模拟输出 / Relay / RS-485等输出讯号可选

适用于各类气体（氮气、氩气、CO2等)

输入
传感器	热线式传感器
量程比	100：1
量测范围*	0 ... 60 m/s
输出
输出讯号	4 ... 20 mA / 0 ... 10 V / Relay / RS-485
讯号连接方式	三线式
暖机时间	60 秒
反应时间	t90≦ 6 秒
负载阻抗	电流输出：≦500 Ω 电压输出：≧10 KΩ
通信
通信方式及协议	RS-485 Modbus RTU
RS-485传输速度	9600、19200、38400、57600、115200 bps
精度
精度	0.5 ... 60 m/s：±(1.5% of mv + 0.8 m/s)
工厂不确定度温度影响	0.2% / °C
工厂不确定度	±1%
量测范围于标准状态 1013 mbar, 20 °C下定义，本产品皆在标准状态下进行校正。 mv = 量测值
环境
量测介质	非腐蚀性气体
工作环境温度 / 湿度	0 ... 50°C / 20 ... 90%RH(非结露)
储存温度	-20 ... +60°C
管路耐压	16 bar
电气规格
工作电源	DC 24 V ±10%
消耗电流	24 V：110 mA
继电器容量	Max.接点电流：6 A Max.接点电压：DC 24 V (接点DC 36 V Max)
电气连接	M12 8P 接头
安装方式
安装方式	PT 3/4″ 活动外牙、PT 1/2″ 活动外牙
显示
显示值范围	0 ... 99999999 (累积量8位数) 0 ... 99999 (瞬间量5位数)
小数点位数设定	按钮规划
取样时间	1 cycle/sec
显示单位	m/s、ft/s、L/min、m³/min、m³/h、mL、L、m³、ft³、inch³、gal、uk gal
反应时间调整范围	0.5 ... 300 秒
认证
认证	CE
保护
防护等级	IP65
电气防护	■ 逆向保护 ■ 过电压保护
材质
本体	铝合金 / 塑料
测棒	SUS316

请注意：产品设计与规格如有变更，恕不另行通知

请注意：若产品有RS-485功能，请确认产品与连接RS-485之仪器共地，避免接地电压差造成损害。

压缩空气系统管理 / 空压机与气动机具效率优化 / 空气干燥机风量调控 / 制程气体用量监测（氮气、氢气、二氧化碳等） / 管线漏气侦测与预警 / HVAC风道监控 / 智能制造能源管理 / 无尘室空气流通监测 / 生医与制药气体供应稳定性监控 / 食品加工产线气体灌装与封装监测
